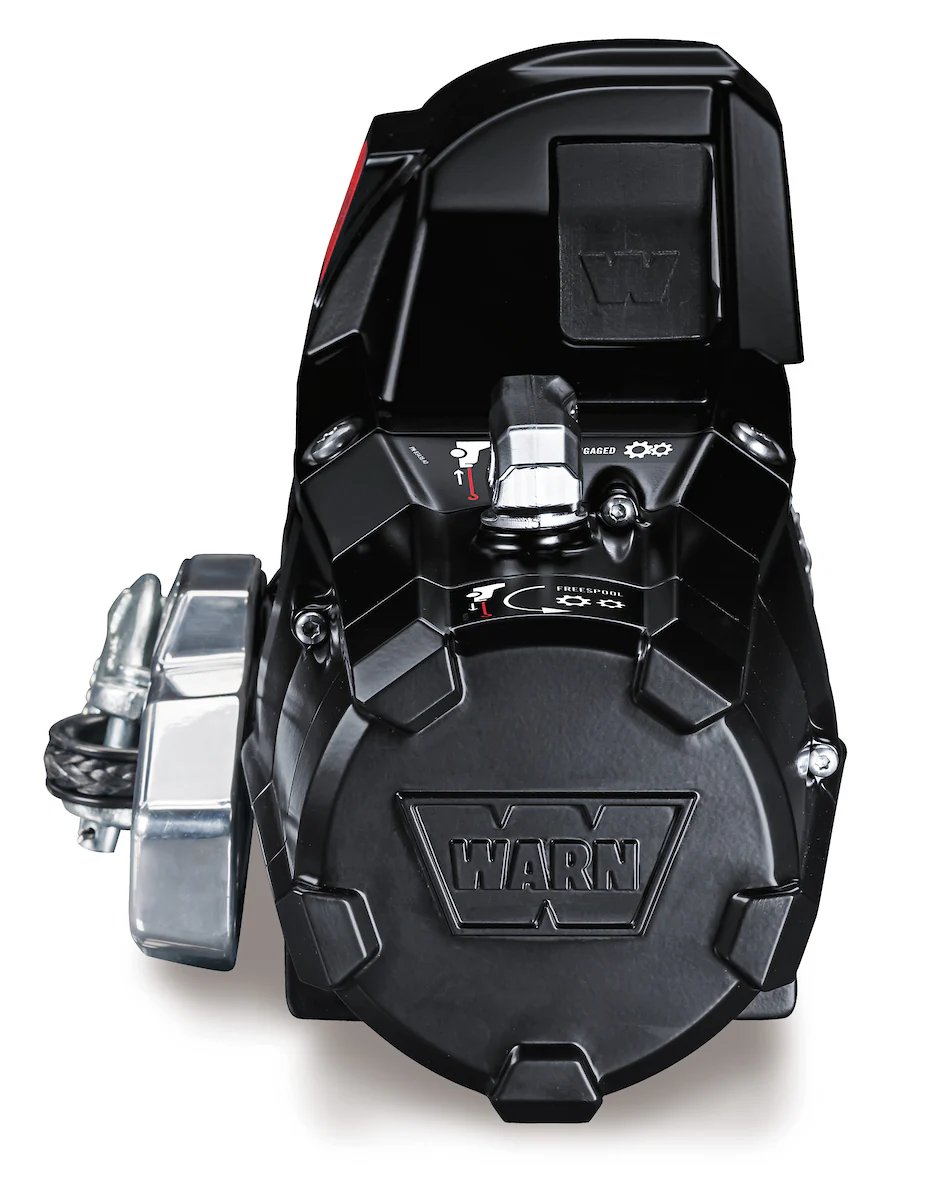

The Warn ZEON® 10-S Winch is engineered for serious off-road enthusiasts and professionals who demand superior performance. With a 10,000 lb single-line pulling capacity, this winch is ready to handle tough recovery tasks. It features 100 feet of 3/8-inch Spydura™ synthetic rope, offering strength and durability for any recovery situation. The polished aluminum hawse fairlead ensures smooth operation while reducing wear on the rope.
Designed for reliability, the Warn ZEON® 10-S comes with a powerful series-wound motor and planetary gear train, ensuring strong, consistent performance under load. The winch features an advanced sealing system to protect the components from dust and water, making it ready for any off-road challenge. Its convertible control pack provides flexible mounting options, and the satin-black powder-coated finish with stainless steel fasteners ensures a sleek, corrosion-resistant design.
Key Features:
-
10,000 lb single-line pulling capacity for heavy-duty recovery tasks
-
100 feet of 3/8-inch Spydura™ synthetic rope with protective sleeves for superior strength and durability
-
Powerful series-wound motor and planetary gear train for reliable performance
-
Convertible control pack for flexible mounting options
-
Satin-black powder-coated finish and stainless steel fasteners for enhanced durability
-
Large-diameter winch drum reduces rope wear and simplifies installation
-
Polished aluminum hawse fairlead for smooth, consistent operation
Specifications:
-
Winch Rating: 10,000 lbs
-
Recommended Use: Vehicle Recovery
-
Operation Type: Electric
-
Mount Type: Fixed Mount
-
Voltage: 12 Volt
-
Free Spooling: Yes
-
Line Length: 100 Feet
-
Line Material: Synthetic
-
Remote Type: Wired
-
Universality: Fully Universal
-
Mounting Pattern Size: 10 Inch Length x 4-1/2 Inch Width
-
Brake Type: Automatic Cone
-
Max Amp Draw: 409 Amps at 10,000 lbs
-
Gear Reduction Ratio: 261:1
-
Includes Mounting Hardware: No
-
Thermal Shutoff: No
-
Color: Black
-
Fairlead Type: Hawse
-
Line Speed at Max Pull: 4.8 Feet per Minute at 10,000 lbs
-
Electrical Control Type: Contactors
-
Motor Type: Series Wound
-
Drive Gear Type: Planetary
-
Line Diameter: 3/8 Inch
-
Mounting Hole Quantity: 4
-
Drum Material: Aluminum
-
Estimated Install Time: 2 Hours
Why Choose the Warn ZEON® 10-S Winch?
The Warn ZEON® 10-S is built to tackle the most demanding recovery situations. With its powerful motor, durable synthetic rope, and advanced features like the convertible control pack and superior sealing, it's the ideal choice for off-roaders who require strength, efficiency, and reliability. Whether navigating tough mud, rocky terrains, or extreme conditions, the ZEON® 10-S is engineered to perform.
Warranty: If you encounter any issues with your Warn product, simply reach out to us for assistance with returns or exchanges according to our policy guidelines.
